Neom Bay — Sindalah Island Arrival Lounge

Structural Analysis & Design of the Steel Structure

43m length x 25m width (1075 Sq. Meter)

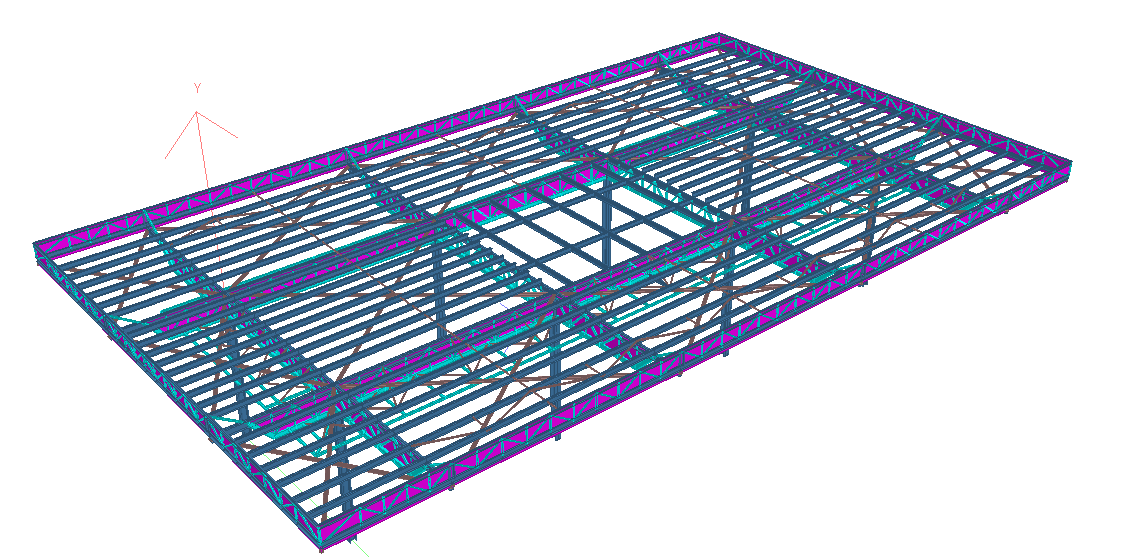

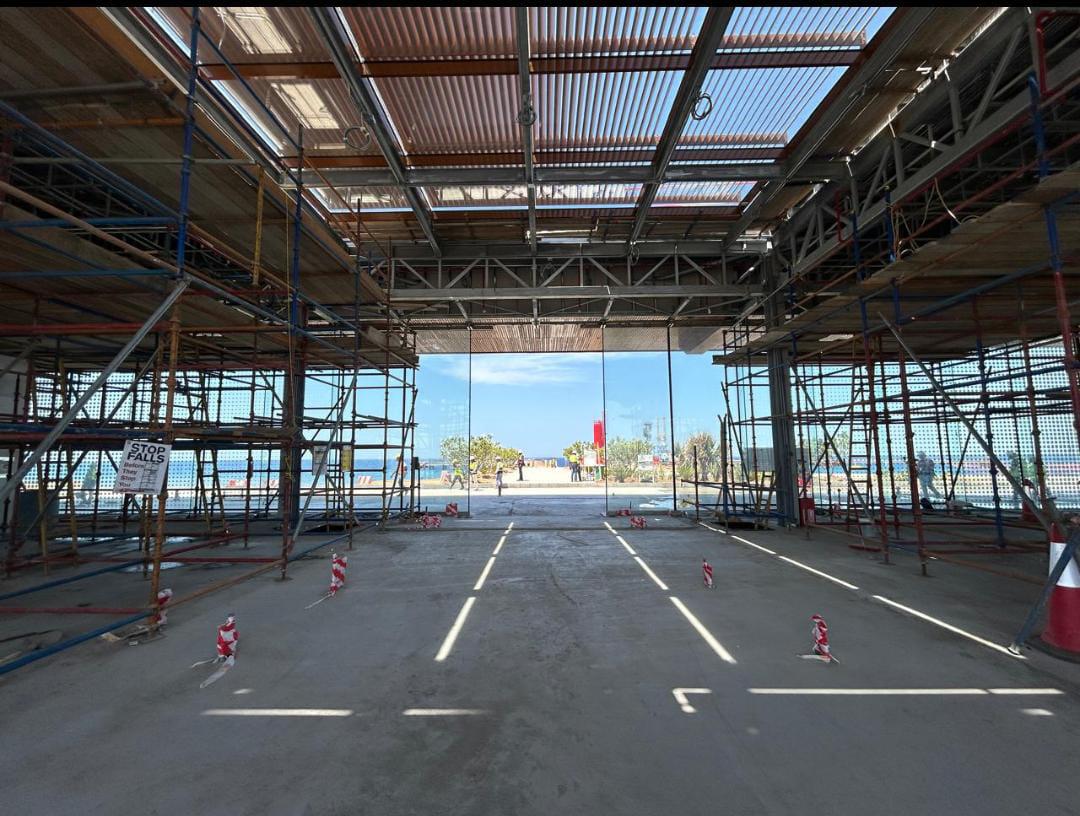

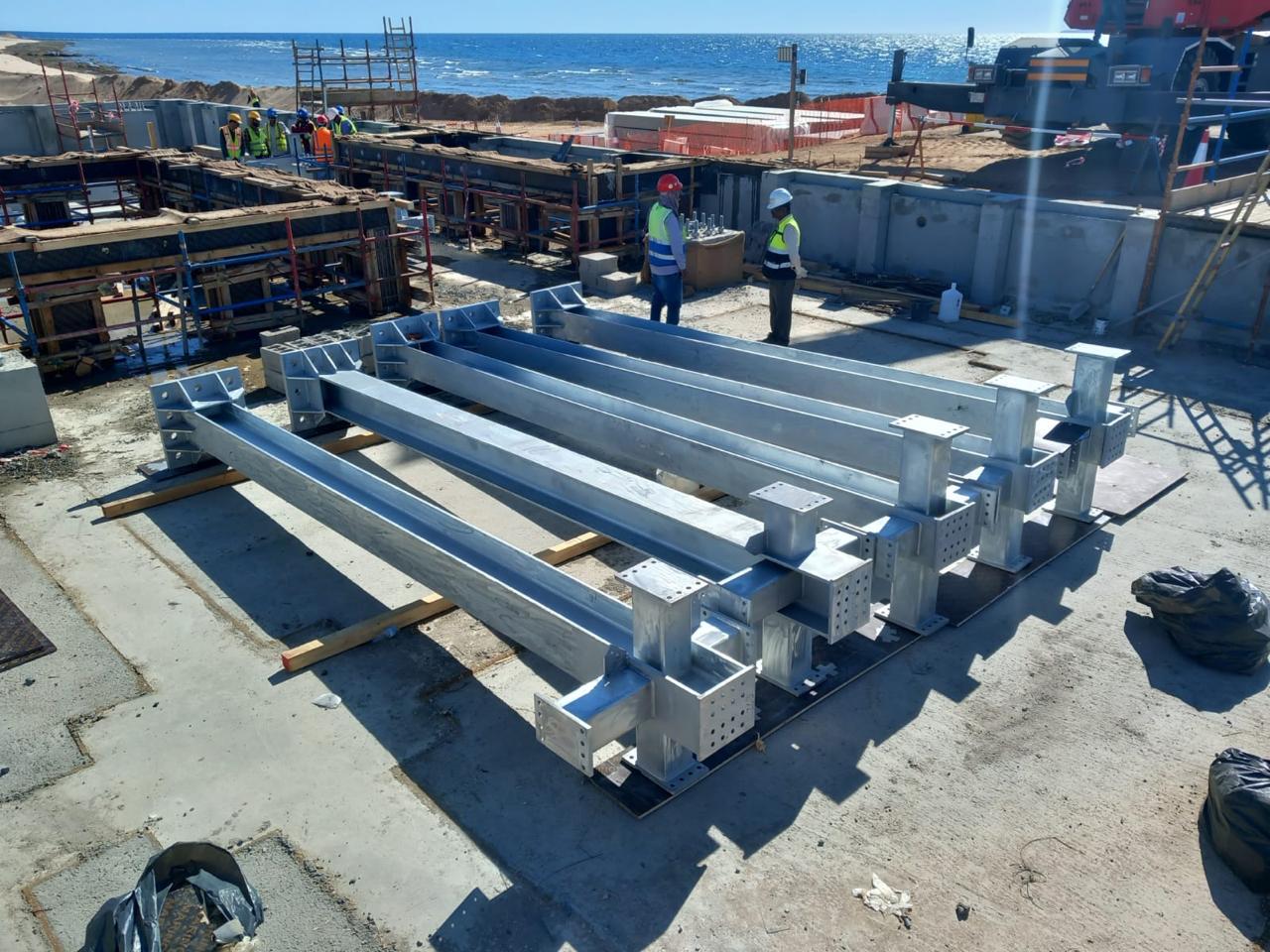

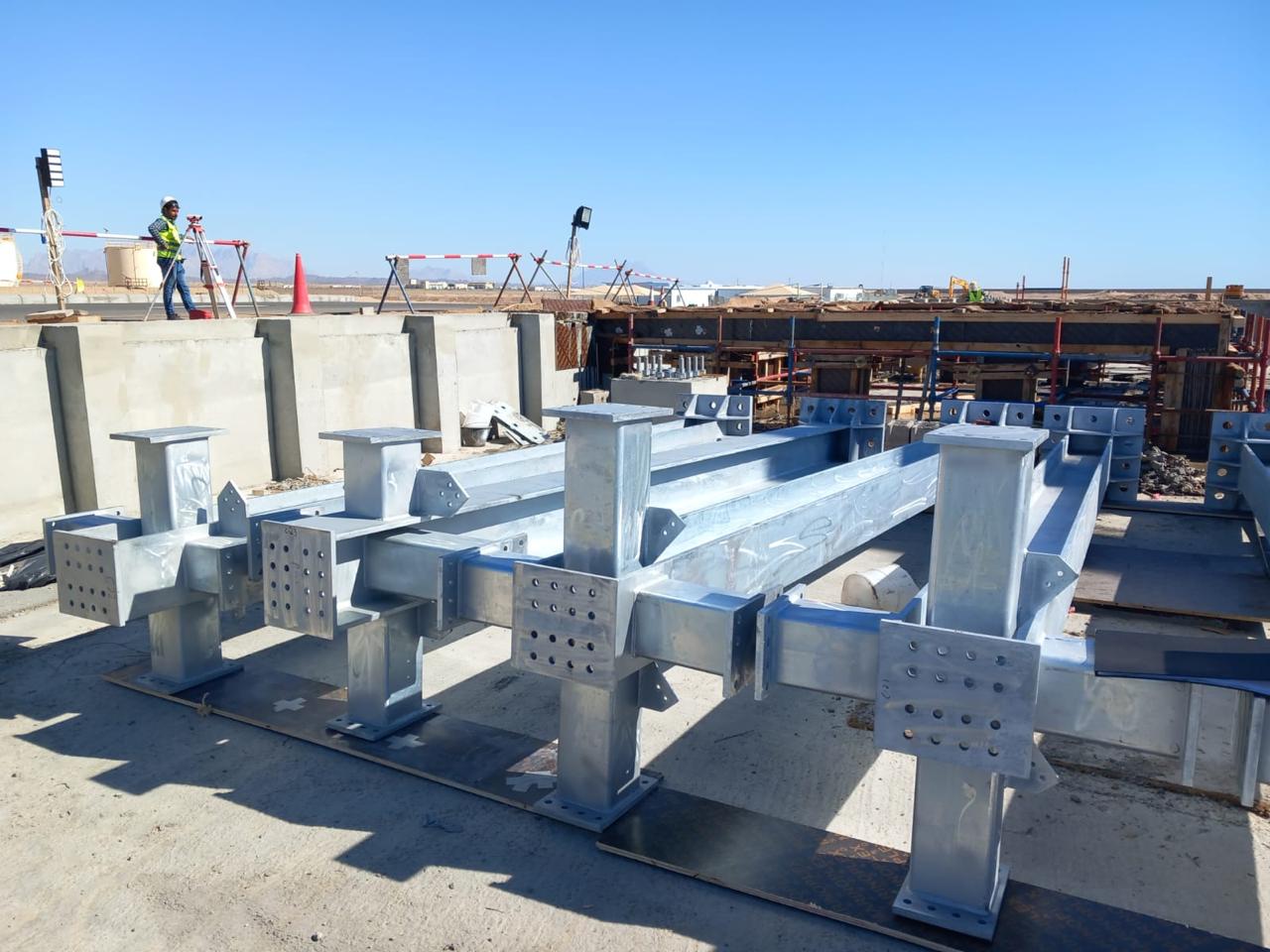

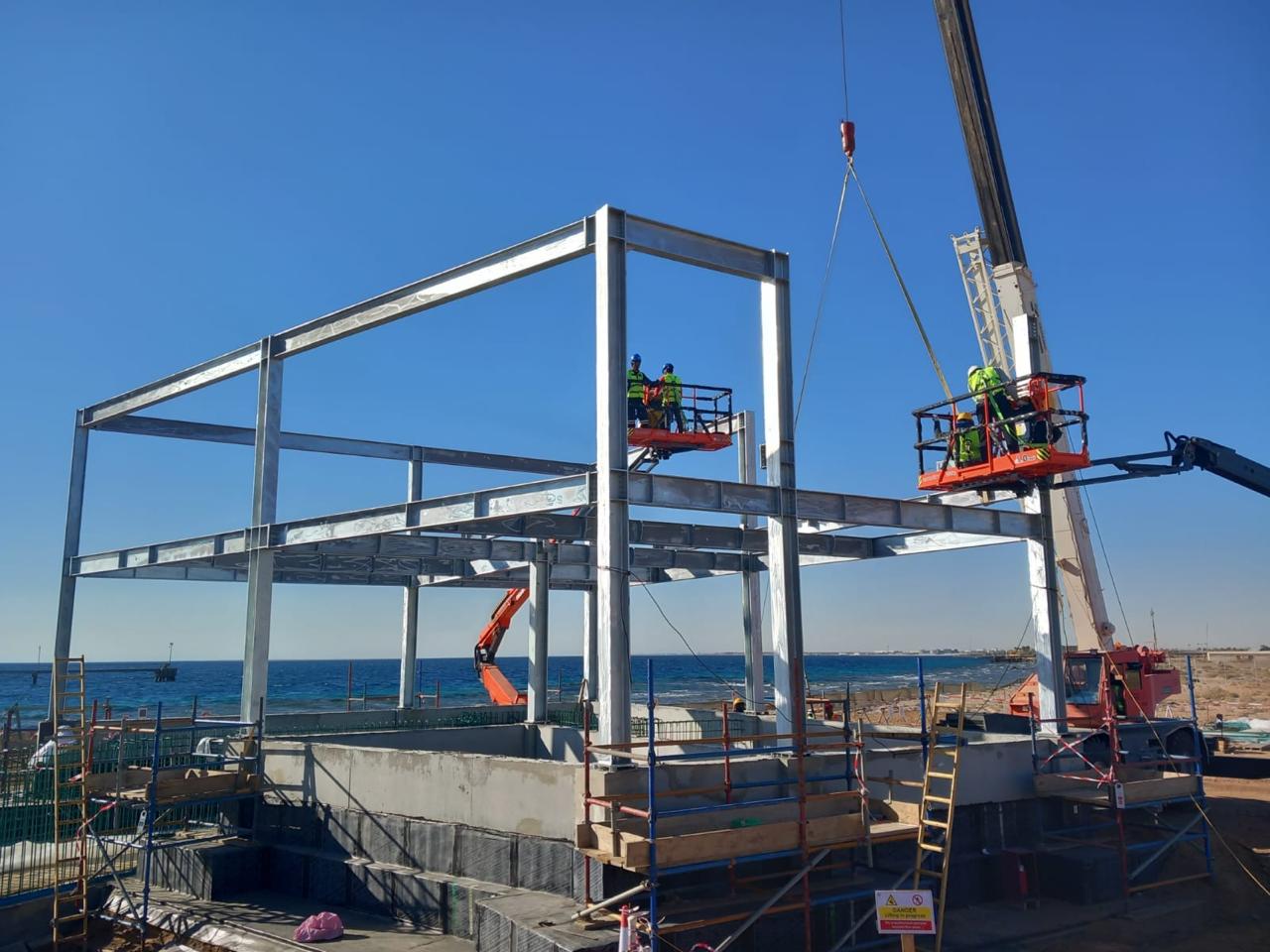

— Analysis and design procedure and data used in the design of the ARRIVALE LOUNGE. The frame is a structural steel, about 6.5 m high, with steel beam arrangement supported by Steel truss which supported by Steel Columns. Steel columns are then supported by concrete pedestal and footing. Plan area of building is 43m x 25 m (1075 Sq. Meter) at roof level and 36.4m x 13.00m(473.20 Sq. Meter) at ground level. —

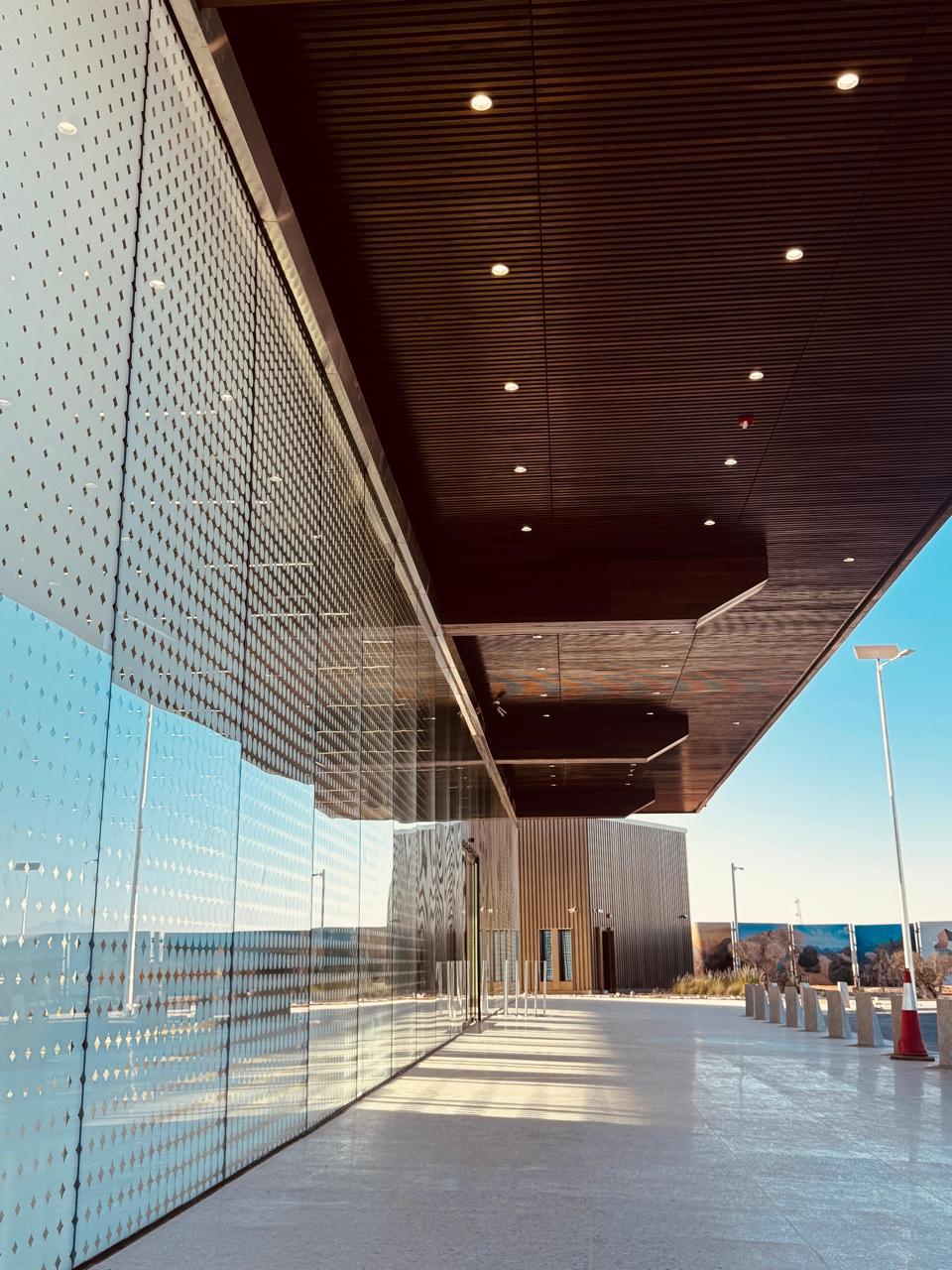

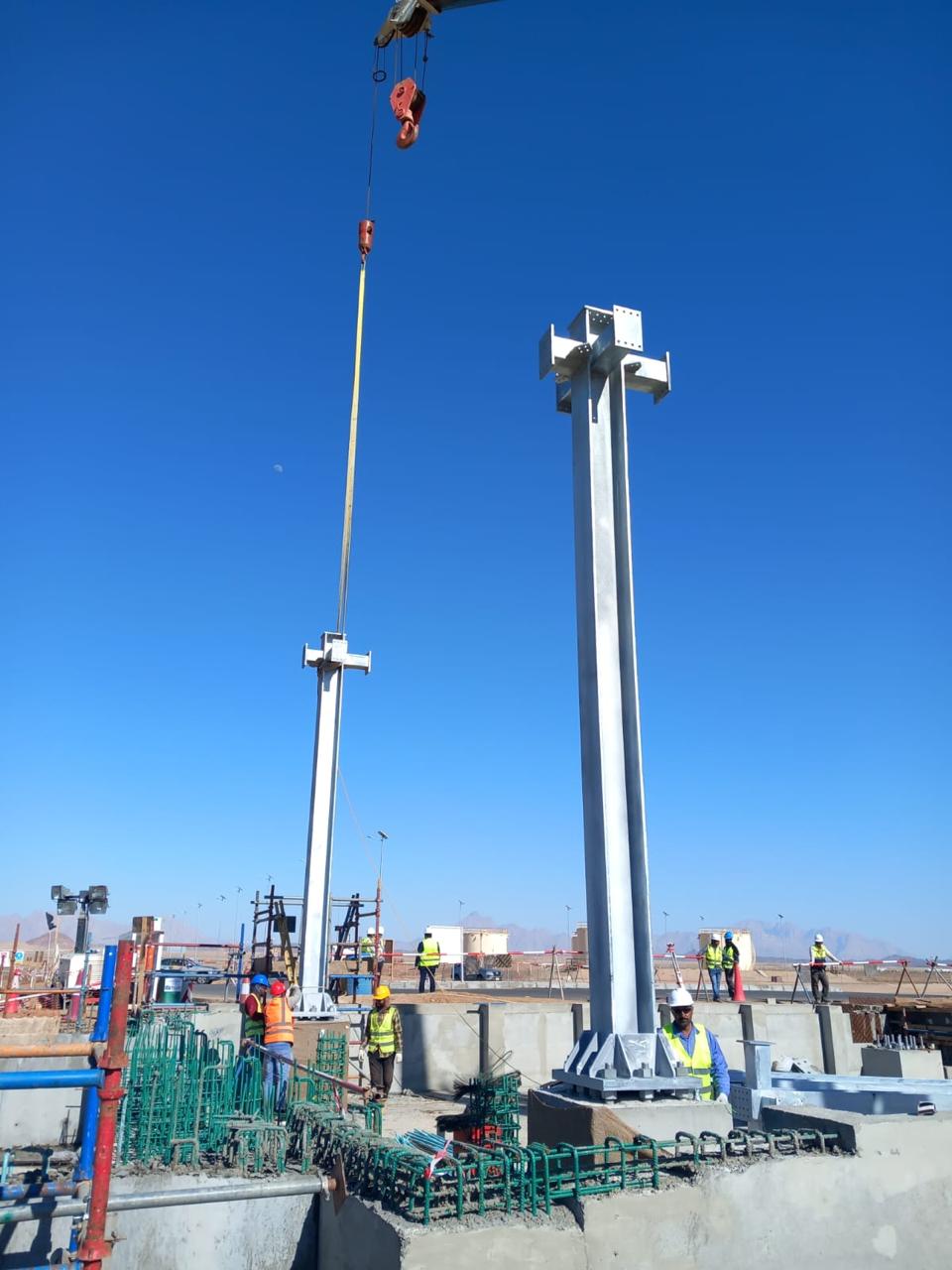

As a Wide Structure on Almost Shore Area with High Wind Speeds and Whole Building Facade Made of Glass 6.5m Height Using Only 6 Columns with Specific Dimensions, Controlling the Building Sway and Deflection While Keeping the Design Efficient Cost Wise was a challenge
